Can I put Aqara T2 Dual Relay between power source and bulb outlet (replacing RF Wireless receiver)?

Developer Hub
, ,
1

Hi there

Looking for help wiring the Aqara T2 Dual Relay Module.

I want to place the Aqara T2 Module between the house power source (Live and Neutral) and a light bulb outlet (in the UK). At the moment, I have a RF Wireless Receiver that I want to replace with the Aqara module. Basically I want to swap out the RF Wireless Receiver for the Aqara T2 Dual Relay Module.

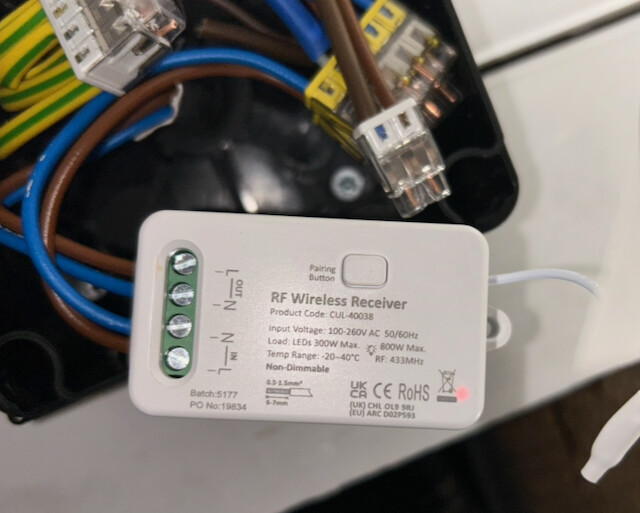

This :point_down: is how the RF Wireless receiver is wired. Simply L in and L out and N in and N out.

IMG_4752
IMG_4752640Ɨ513 69.8 KB

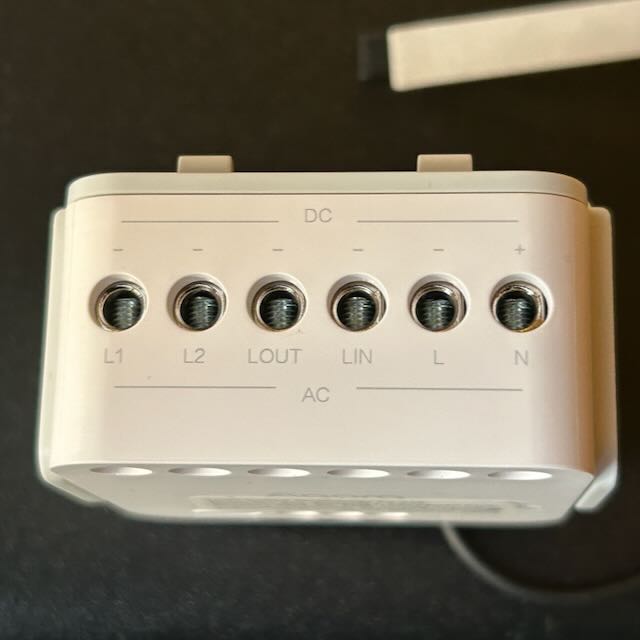

Anyone know if and how to replicate this with the T2 Module with these :point_down: labels.

IMG_4754
IMG_4754640Ɨ640 25.8 KB

Iā€™m thinking:
L in :point_right: L
L out :point_right: L1
N in :point_right: N

And I short Lin-Lout in the Aqara module. So like this :point_down:

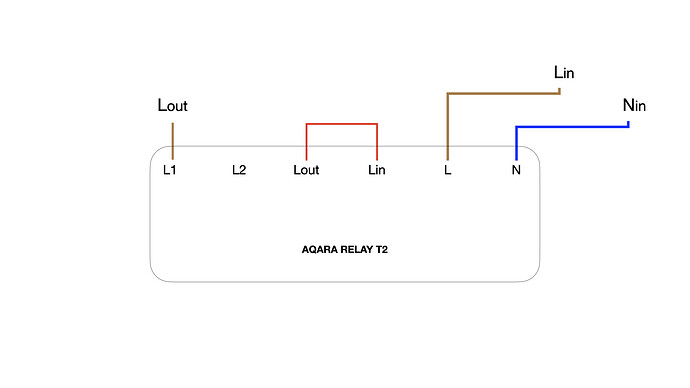

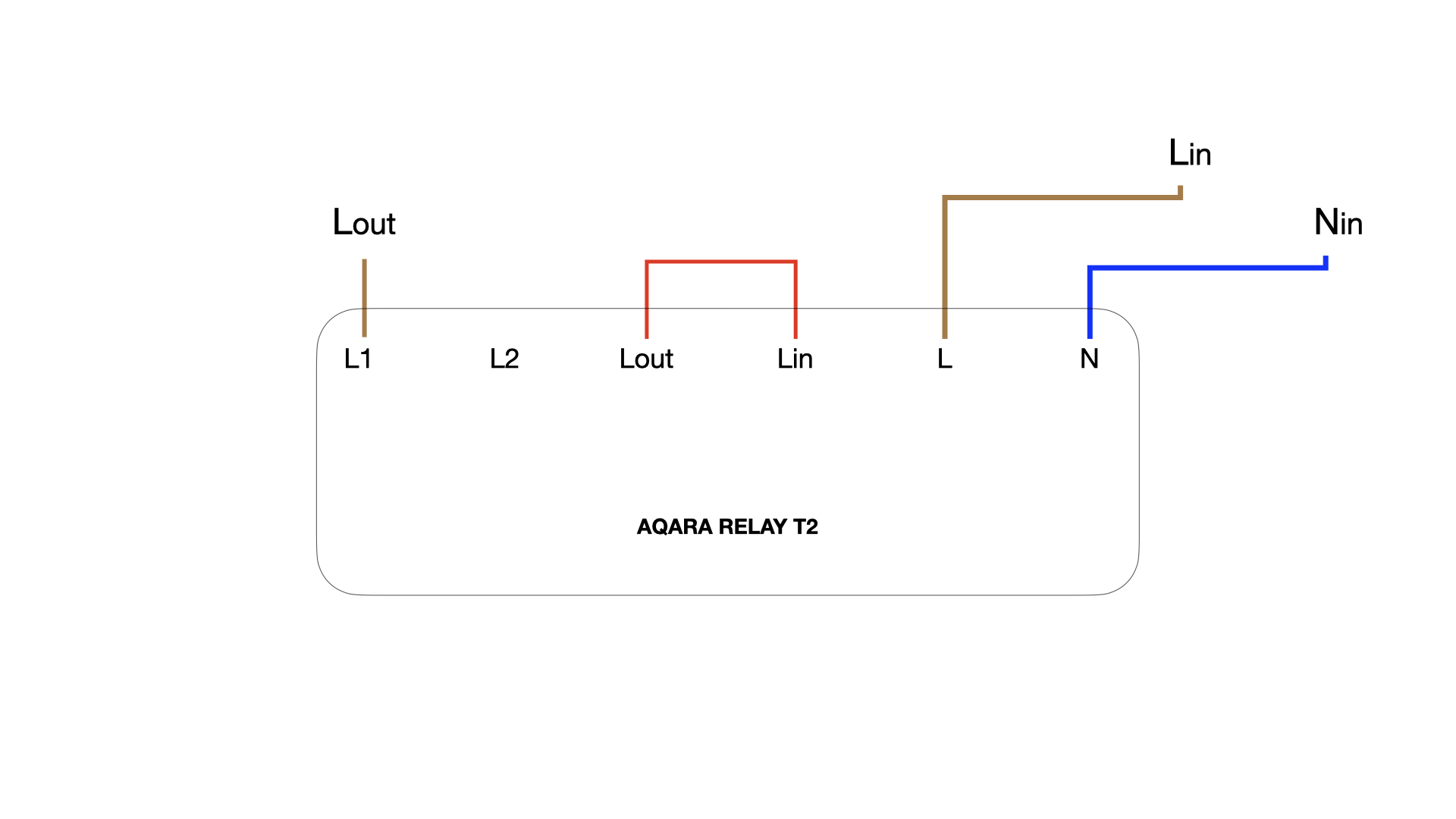

Wiring.001
Wiring.0011920Ɨ1080 63.7 KB

Iā€™m not sure how to wire what is currently N out in the Wireless receiver though. Should it be pigtailed with the N on the right?

Any thoughts would be much appreciated.

Thank you!

2

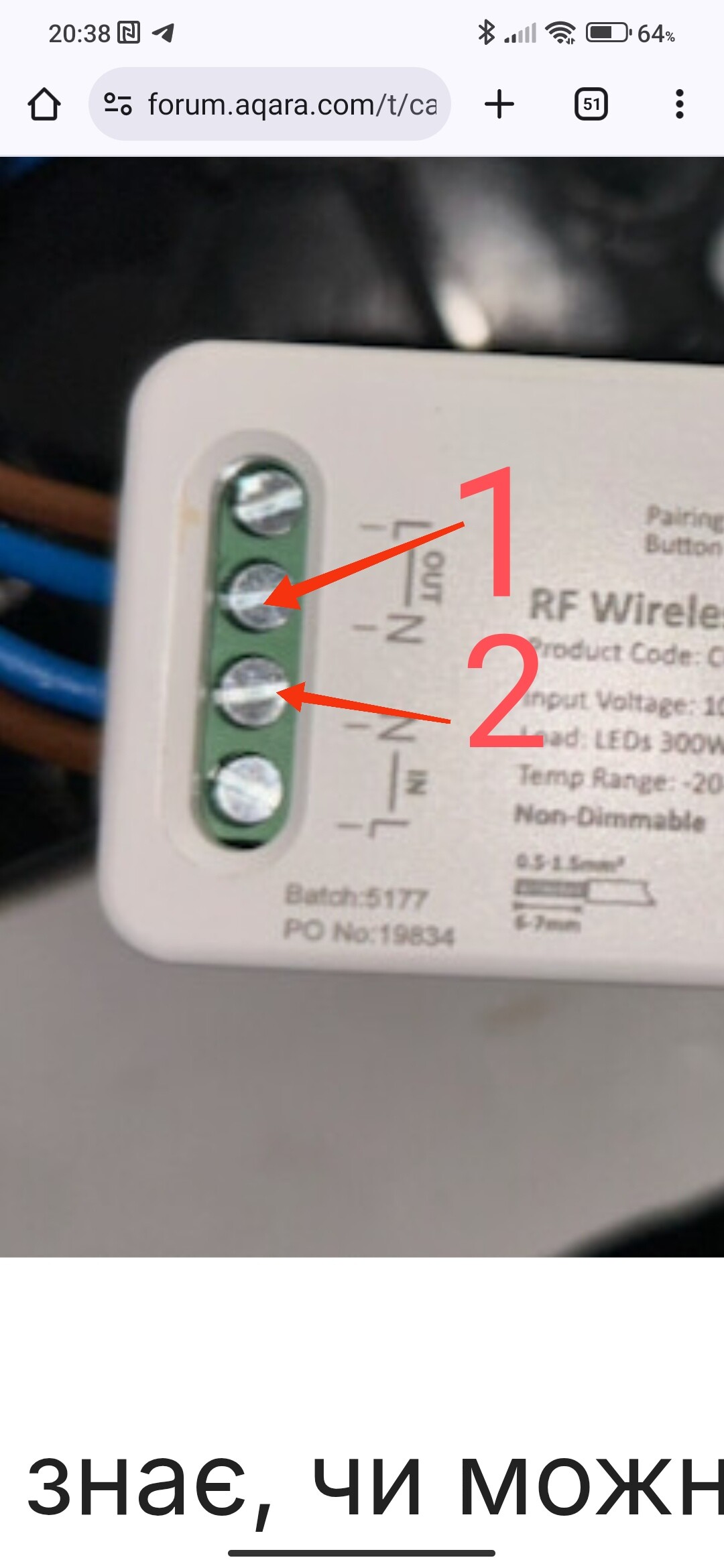

Hello, this is how it should be done.

IMG_20251122_203937
IMG_20251122_2039371080Ɨ2340 183 KB

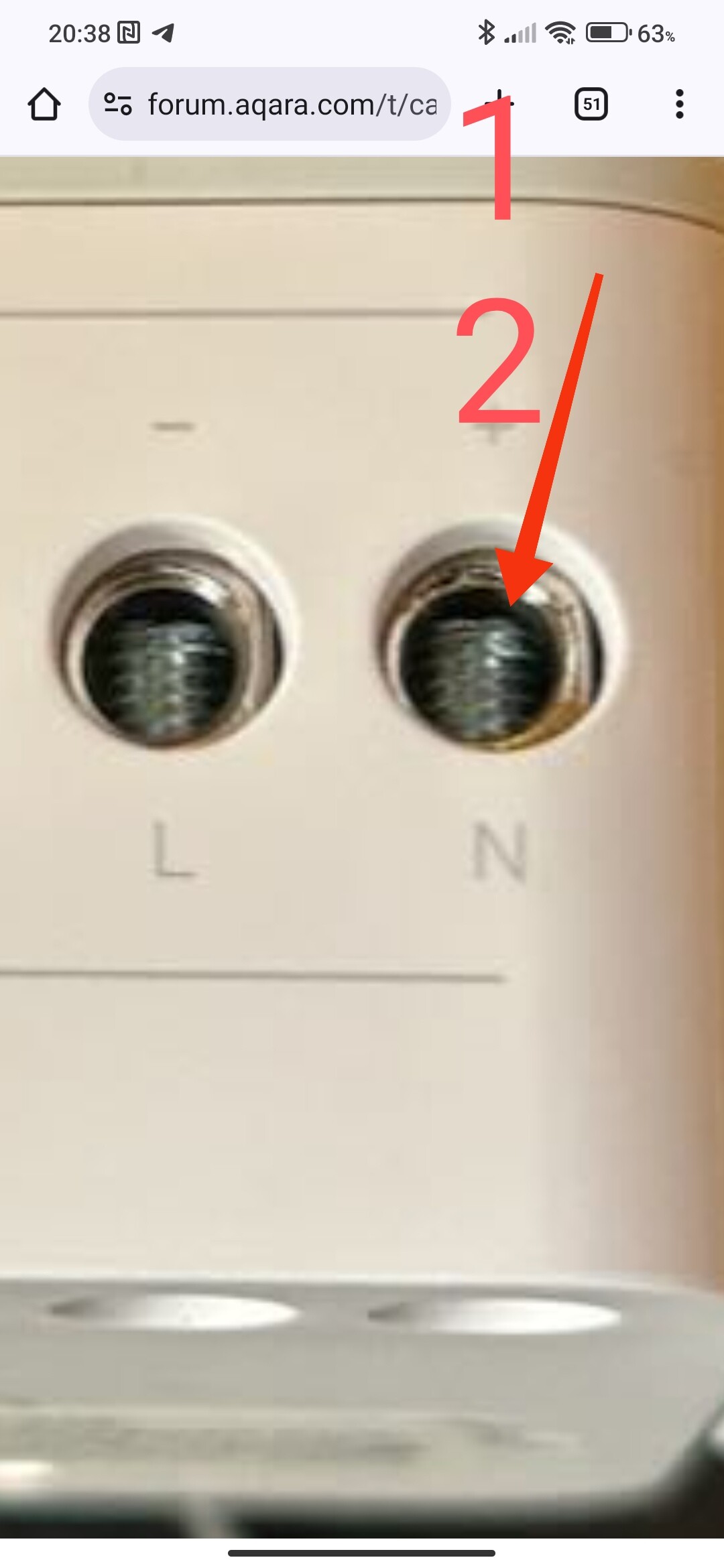

IMG_20251122_204017
IMG_20251122_2040171080Ɨ2340 150 KB

1 Like
3

Perfect. Just what I was looking for, thank you.

1 Like
4

Thanks for the feedback, maybe you will find my description of T2 useful Rele T2, let's talk about it again

2 Likes
