Hello.
I would like to know if it’s possible to show information managed by home assistant ( example, data from solar enphase system) on the screen of the display hub S1 ?
Same question with the phillips hue that I 've at home. Is it possible to have the command of the lamp driven by hue on the screen of the display S1 plus ?
Thanks.
Hello @forum6691
If you have a Hue hub and you add it via matter to Aqara home (your Hue light will also be passed through) and you will be able to display it on the S1 plus screen and control the brightness and color temperature and color selection.
From HA you can also add devices to Aqara home, you need Matter Hub integration and then you can also use them with the S1 plus panel.
Thanks Raman.
2 questions for you:
1- My philips Hue is a little old , so it’s not matter compatible, just zigbee I think. But when I’m search an accessory it doesn’t appear .
2- I succeed to add a Meross switch matter compatible with the smartphone appliation to my home. It appears in 2 acessories (one is the switch and the other is the energy monitor of th switch). All is OK. Howewer, when I want to add this switch in the panel hub S1 plus, it proposes me only the acessory switch, not the acessory “energy monitor” in the list. An idea th display the energy monitor on the panel hub ?
Thanks Raman for your quick answer.
For the topic 1:
I 've found the code matter in HUE. Importation is ok. I have 2 lihts from hue. Importation in the panel hub S1 + is possible , but on the 2 ligths display not connected and the other display connected. It seems there is a bug.
Moreover, it is only possible to switch the connected light not to acess to the diming of the light (colour,…)
Topic2: Very disapointed the limitation in the S1 plus for display energy data from the plug, becaus , I 've bought the S1 + to centralised the command on the this screen of all the important informations in my home and display of energy data (produced or consumed) is very important for me. Do you plan in the future this type functionnality on the S1 + display ?
Hello, I’d like to ask if you can see the energy consumption data of this smart plug in the Aqara Home app. Is it visible in the Whole Home Energy service within the app? Which specific model is it? I’m guessing the reason you can’t see the data is that this particular smart plug doesn’t support power metering. Normally, if the plug supports power metering, its energy consumption data should be visible across these sections of the app.
Hello Mandy.
The plug is a Meross MSS315ZF Matter compatible. The energy consumption of this plug are well visible in the aqara android application in the dash I ‘ve creataed ( however I dont’ find the WHOLE HOME ENERGY you spoke ).
My hope is to have the same informations in the dashboard on my Aqara panel S1 plus but Raman answered that it 's not possible. But I think it’s a very important function to add to the panel S1 Plus software.
Maybe you can add to your development ?
Sincerely
Cyril
I see. So this is a Matter smart plug from a non-Aqara brand. As far as I know, the energy consumption statistics feature on the S1 Plus screen has not yet been upgraded to the latest version. Currently, it’s still using the older version, which only supports generating electricity usage charts for Aqara-branded devices that have power metering capabilities. The upgrade of this feature depends on the development schedule of the screen-side project team. That said, the relevant team has already received your feedback and will take it into consideration.
In the meantime, would you be willing to try using the Whole-Home Energy feature on the app? It supports Matter devices and offers more comprehensive functionality. You can access it by going to the app’s homepage, adding a new card to the dashboard, selecting the Whole-Home Energy card, and then tapping into the details page from there. Give it a try!
Hi Mandy. Thanks for your reactivity on the forum.
Success in add the Whole-Home Energy card in my phone. It gives the consumption of the matter Meross plug + other accessory. Interesting.
But when I import this dashboard int S1 plus screen, this whole home energy card is not imported. So the S1 plus screen doesn’t support this card
I hope update of the S1 plus in the futur
I’m going also to see the portal https://developer.aqara.com/ . With this environment, is it possible to developp plugin for the S1 plus to request http systems (like enphase envoy) in order to present information from an output system on the S1 plus screen ?
Has anyone tried the Home-Assistant-Matter-Hub plug-in in Home Assistant as this may allow the display of info in the S1 Plus?
Very interested by this return also, because display of S1 plus is limlited to basis information et to accessories from Aqara at hte moment.
I ask me if buy a home assistant green box could help me to show more information on the S1 plus
Hi

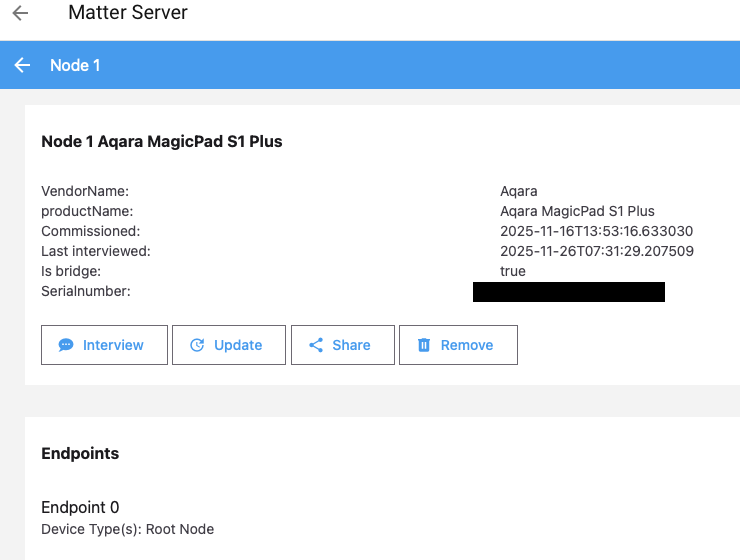

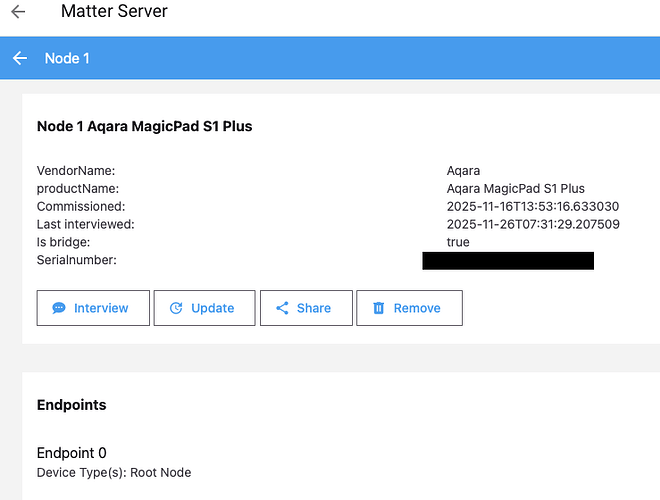

I use HA matter Hub, all types of matter devices that the S1 plus panel supports can be displayed on the screen, those that do not cannot be displayed, perhaps in the future the list of types of matter devices will be expanded.
So are you saying that if the device type is supported on the S1 then it can be shared directly from HA matter hub? Or is it only very specific devices allowed?
Can more devices be displayed on the S1 if first shared over matter to an M3 hub and then displayed on the S1?
